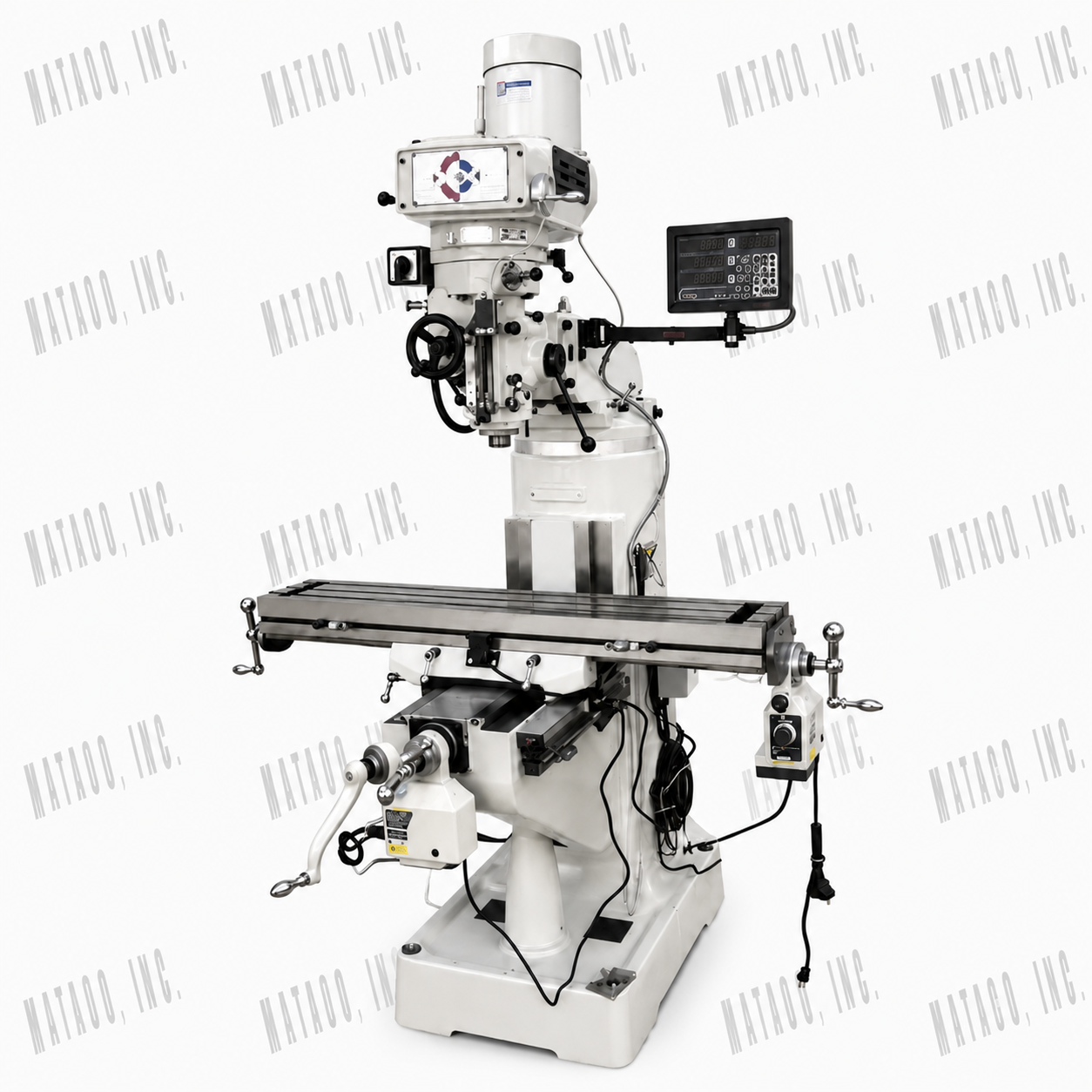

9″ x 49″ Variable Speed Vertical Milling Machine
Built for precision, reliability, and long-term performance, this 9″ x 49″ Variable Speed Vertical Milling Machine is manufactured in Taiwan and designed for professional machine shops, toolrooms, production facilities, and maintenance departments.
Featuring a 3 HP variable-speed spindle, hardened and ground ways, premium spindle construction, Turcite-B slideways, and precision hand-scraped surfaces, this mill delivers the accuracy and durability expected from a high-quality Bridgeport-style machine.
Machine Features
- 9″ × 49″ hardened and ground table
- Precision ground T-slots
- 3 HP variable-speed spindle motor
- R8 spindle (NST #30 optional)
- SCM415 (SAE 4115) hardened and ground spindle
- Bearing-supported motor shaft
- Improved variable-speed head design
- Heavy-duty spindle auto-feed with spline pinion and clutch support
- Turcite-B on X- and Y-axis ways, slideways, and gibs
- Hardened and ground X & Y slideways
- Electroless nickel-phosphorus coated X & Y leadscrews (35 HRC)
- PBC2 phosphor bronze leadscrew nuts
- 1-1/4″ (32 mm) diameter lifting screw
- Precision hand-scraped mating surfaces
- Leveling screws and base plates included
- Front and rear rubber chip guards
- Toolbox and service tools included
- Made in Taiwan
Specifications
| Specification | Value |
|---|---|
| Table Size | 9″ × 49″ (230 × 1245 mm) |
| T-Slots | 3 × 5/8″ |
| Longitudinal Travel (Manual) | 37″ (940 mm) |
| Longitudinal Travel (Power Feed) | 34″ (863 mm) |
| Cross Travel | 12″ (305 mm) |
| Knee Travel | 16″ (406 mm) |
| Ram Travel | 14″ (356 mm) |
| Quill Travel | 5″ (127 mm) |
| Table to Spindle | 1-3/8″ – 17-3/8″ |
| Turret Rotation | 360° |
| Head Swivel | ±90° |
| Head Tilt | ±45° |
| Spindle to Column | 6″ – 21″ |
| Spindle Motor | 3 HP |
| Spindle Taper | R8 (NST #30 Optional) |
| Quill Feed | 0.0015″, 0.003″, 0.006″/rev |
| Spindle Speed (60 Hz) | 60–4,500 RPM |
| Spindle Speed (50 Hz) | 50–3,800 RPM |
| Overall Dimensions | 84″ H × 63-5/8″ D × 59″ W |
| Net Weight | 2,200 lbs. (950 kg) |
Optional Accessories
Customize your milling machine with a variety of factory-installed accessories. Please allow an additional 2–3 weeks for installation.
Available Options
- Align AL-500 X-Axis Power Feed
- Align AL-500 Y-Axis or Z-Axis Power Feed
- Coolant System
- Coolant Tray/Base
- Quartz Work Light
- 6″ Angle-Lock Milling Vise with Swivel Base
- 54-Piece Clamping Kit
- R8 Right Angle Attachment
- Electrical Box with Three 110V Outlets
- XY Ballscrew Upgrade Kit
- Newall NMS800 3-Axis DRO
- Newall NMS300 2- or 3-Axis DRO
- Mitutoyo Quill Kit
- Automatic R8 Power Drawbar
Contact Mataco, Inc. for current pricing, availability, and installation of optional accessories.
Delivery
- Approximate lead time: 4–6 weeks after receipt of your confirmed purchase order.
Warranty
- Two-year warranty on mechanical components
- One-year warranty on electrical components
